Attaching/Removing the Knee Llifter

Temporarily lifting the presser foot using the knee lifter allows to position the sewing project with both hands.

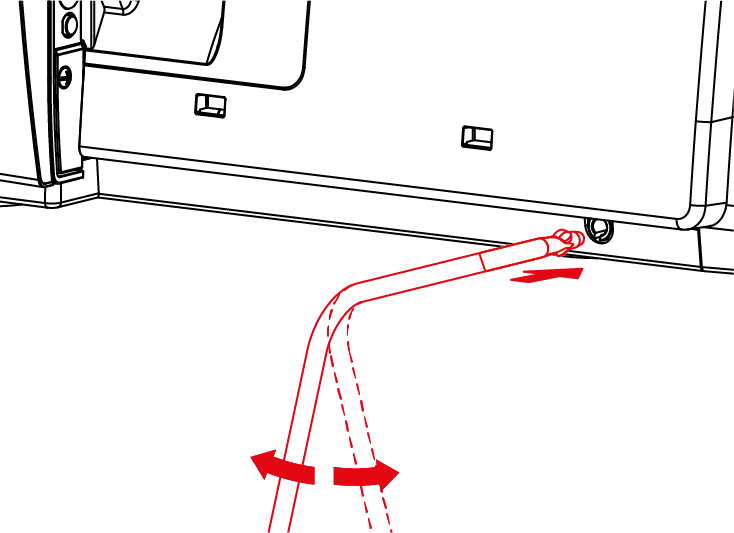

  1. To attach the knee lifter, push the knee lifter engaging cam in a horizontal position into the knee lifter connection until it stops.
  3. To remove the knee lifter, pull the knee lifter out of the knee lifter connection without swinging the knee lifter sideways.

Tip

The swing-out position of the knee lifter can be adjusted at an authorized bernette dealer if required.
