Knife «On/Off»

For a better overview and better access in the sewing area, e. g. for threading, the knife can be lowered (off) and then engaged again (on). The knife is also lowered if the sewing project already has a clean cut edge and the edge is only to be finished. The best sewing results are achieved by cutting and finishing in one single step.

NOTICE

Missing Knife Cover Insert or Coverstitch Insert while Sewing

Injuries caused by the knife or by the looper movement.

Before each sewing, check whether the mounted knife cover insert or the coverstitch insert is attached.

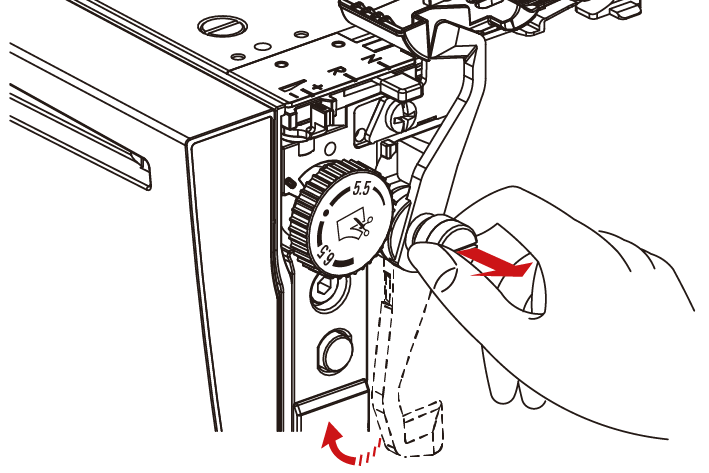

Knife «Off» (to lower)

  1. Open the threader cover.
  2. Pull the knife away from the stitch plate as far as possible and then lower it forwards to the lock-in position.
  4. Close the threader cover.

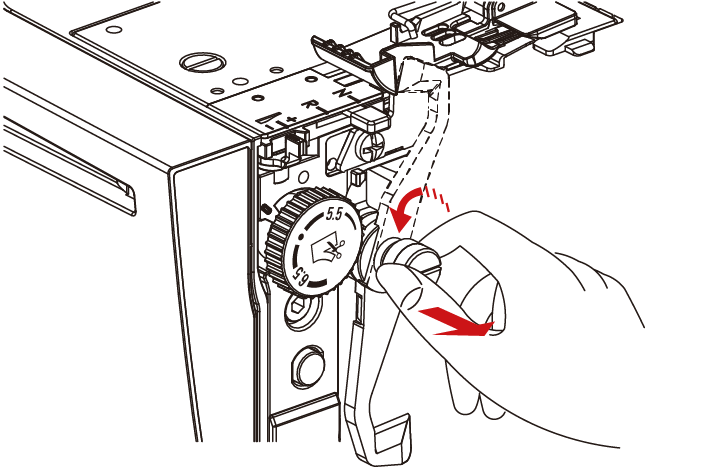

Knife «On» (to lift)

  1. Open the threader cover.
  2. Pull the knife away from the stitch plate as far as possible and then lift it backwards to the lock-in position.
  4. Close the threader cover.
