Setting the Cutting Width

The cutting width for the knife position can be adjusted between 5 – 7 mm. The numbers on the scale correspond with the actual cutting width in mm from the left overlock needle LN to the cutting edge. Towards the right overlock needle, the cutting width is reduced by 2 mm. The cutting width has a direct effect on the stitch width.Adjusting the Stitch Width

If the cutting width changes, the knife, the stitch finger and the threader cover move in the corresponding direction.

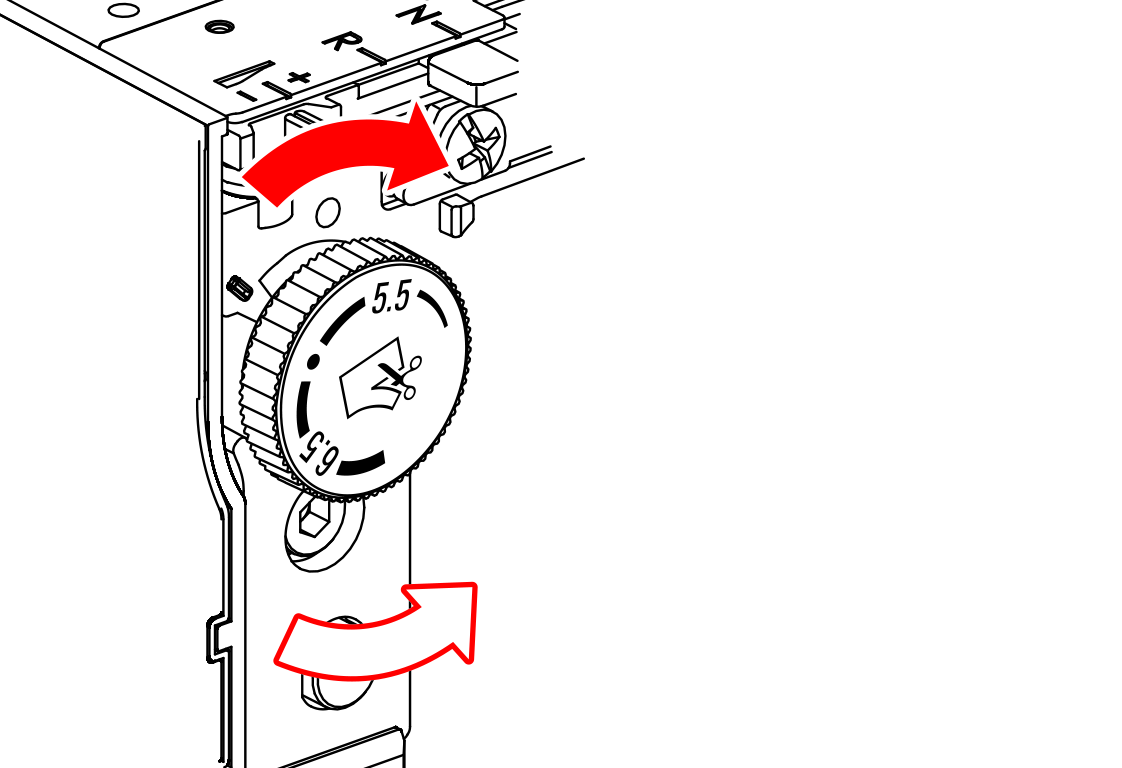

  2. To increase the cutting width, turn the cutting width dial to a higher value.
  3. To reduce the cutting width, turn the cutting width dial to a lower value.
