Preparing the Thread Guide

The thread guide ensures a clean unwinding of the thread from the thread cones. Each thread is guided through a thread guide wire located directly above the thread cone.

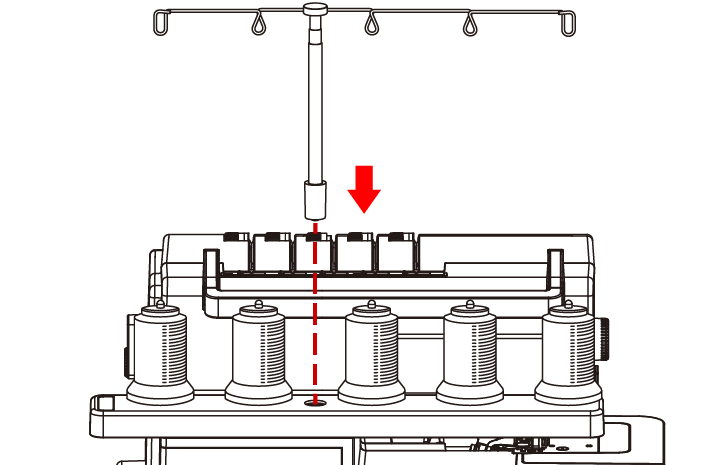

  1. To attach the retractable thread guide, insert the thread guide into the provided opening in the spool holder until it clicks.

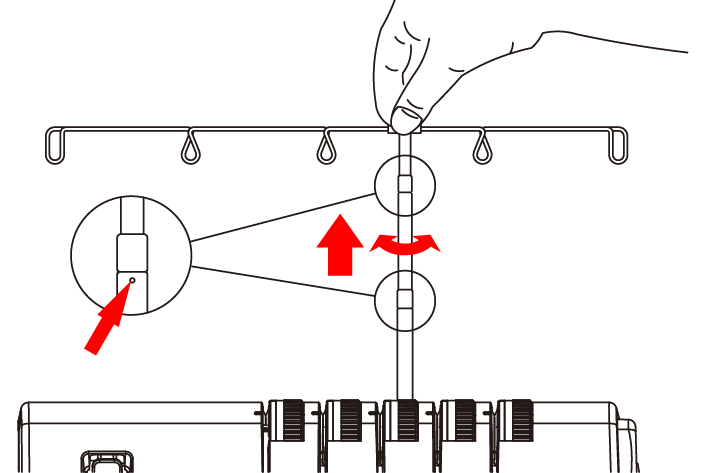

  3. Hold the thread guide and pull it up to the stop.
  4. Turn the thread guide to the left and right until the two positioning pins engage.
  5. The outer thread guide wires are parallel to the machine front.
  7. To retract the thread guide, push the thread guide down with a little pressure.
