Stitch Chart
This manual includes a stitch overview with all necessary default settings for each stitch. These default values may vary depending on the used material.
- Remove all the needles which are not required.
- Set the mtc micro thread control to center position.
No. | Stitch Name | Stitch Pattern |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|

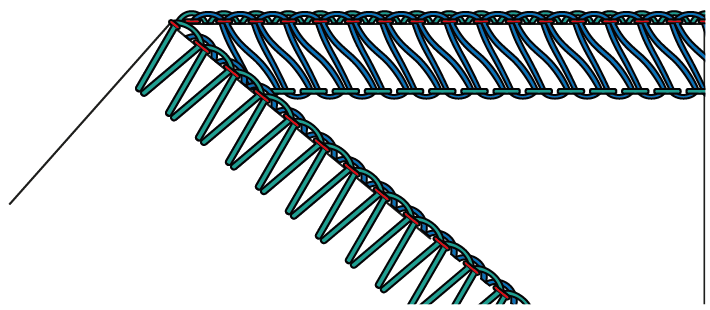

1 | 4-Thread Overlock with Integrated Safety Seam |
| 4 | 4 | 4 | 4 | ─ | 6 | N | 2.5 | 1 |

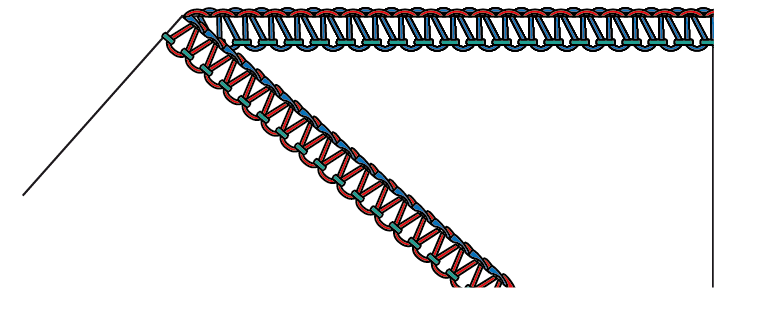

2 | 3-Thread Super Stretch |
| 5 | 4 |
| 4 | ─ | 6 | N | 2.5 | 1 |

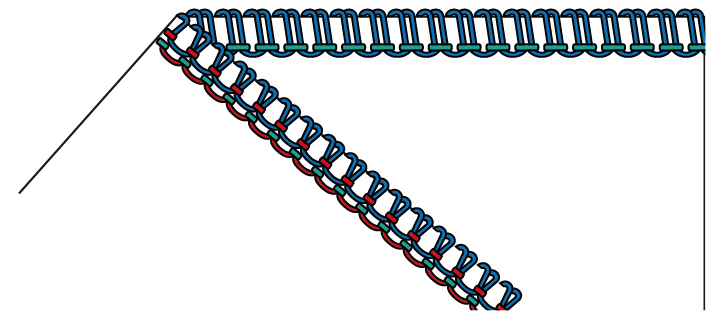

3 | 3-Thread Overlock Wide (LN) |
| 4 | ─ | 4 | 4 | ─ | 6 | N | 2.5 | 1 |

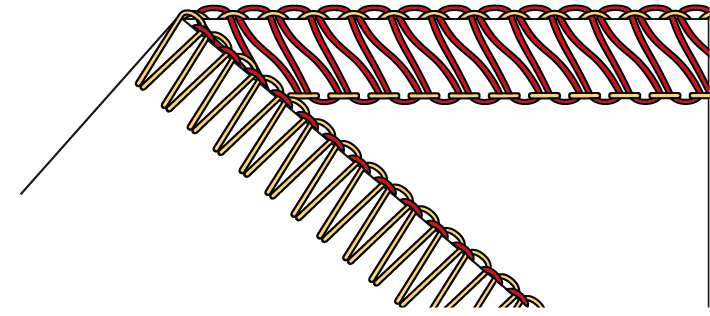

4 | 3-Thread Overlock Narrow (RN) |
| ─ | 4.5 | 4 | 4 | ─ | 6 | N | 2.5 | 1 |

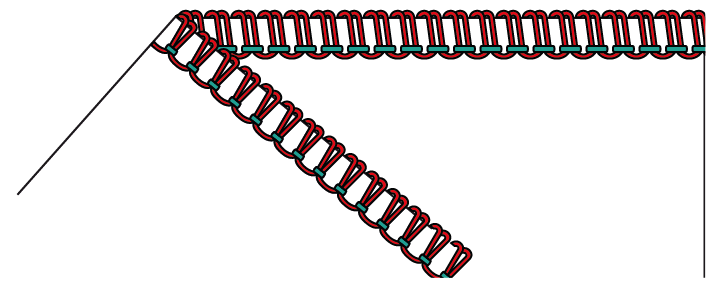

5 | 3-Thread Flatlock Wide (LN) |
| 0 | ─ | 5 | 8 | ─ | 6.5 | N | 2.5 | 1 |

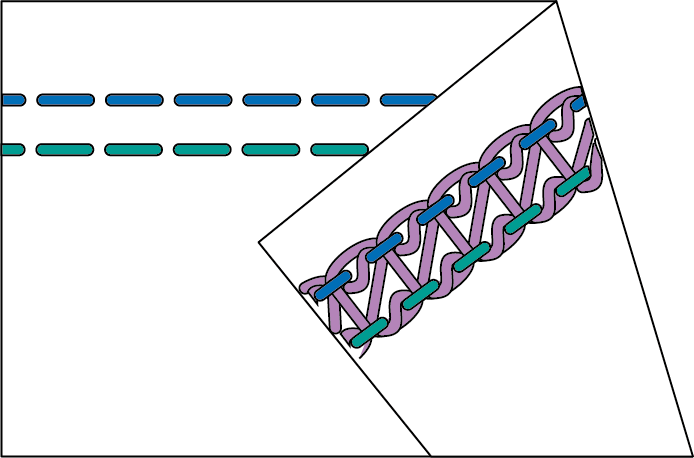

6 | 3-Thread Flatlock Narrow (RN) |
| ─ | 0 | 6.5 | 8 | ─ | 5.5 | N | 2.5 | 1 |

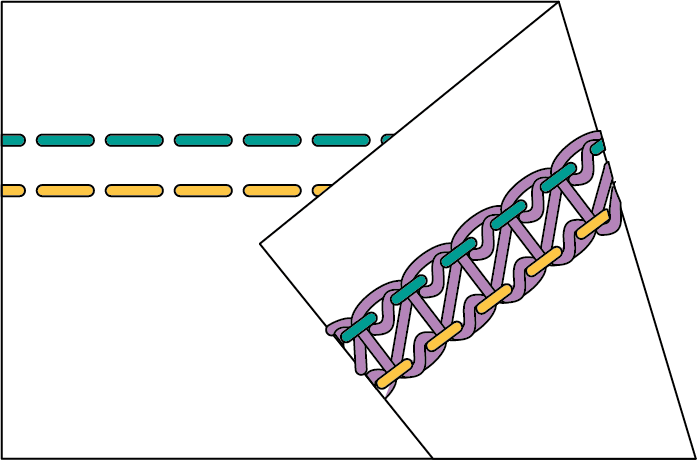

7 | 3-Thread Rolled Seam |
| ─ | 4.5 | 5 | 4 | ─ | 6 | R | 1.5 | 1 |

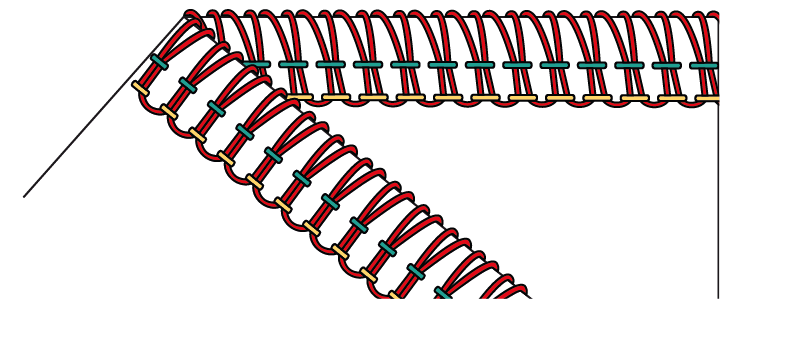

8 | 3-Thread Rolled Hem |
| ─ | 4.5 | 5 | 7 | ─ | 5 | R | 1.5 | 1 |
9 | 2-Thread Wrapped Overlock Wide (LN) |
| 3 | ─ |
| 3.5 | ─ | 6 | N | 2.5 | 1 |
10 | 2-Thread Wrapped Overlock Narrow (RN) |
| ─ | 5 |
| 4 | ─ | 6 | N | 2.5 | 1 |
11 | 2-Thread Flatlock Wide (LN) |
| 0.5 | ─ |
| 7 | ─ | 5.5 | N | 2.5 | 1 |
12 | 2-Thread Flatlock Narrow (RN) |
| ─ | 3 |
| 7.5 | ─ | 6 | N | 2.5 | 1 |
13 | 2-Thread Rolled Hem |
| ─ | 5 |
| 4.5 | ─ | 5.5 | R | 1.5 | 1 |
14 | 2-Thread Overlock Wide (LN) |
| 0.5 | ─ |
| 7 | ─ | 5.5 | N | 2.5 | 1 |
15 | 2-Thread Overlock Narrow (RN) |
| ─ | 3 |
| 7.5 | ─ | 6 | N | 2.5 | 1 |
16 | 2-Thread Chainstitch (LC) |
| 6 | ─ | ─ | ─ | 4 | ─ | R | 3 | 1 |
21 | 4-Thread Coverstitch |
| 3 | 6 | 6 | ─ | 4 | ─ | R | 3 | 1 |
22 | 3-Thread Coverstitch Wide (LC-RC) |
| 2.5 | ─ | 4.5 | ─ | 4 | ─ | R | 3 | 1 |
23 | 3-Thread Coverstitch Narrow (LC-CC) |
| 3.5 | 6 | ─ | ─ | 4 | ─ | R | 3 | 1 |
24 | 3-Thread Coverstitch Narrow (CC-RC) |
| ─ | 4.5 | 6 | ─ | 4 | ─ | R | 3 | 1 |
30 | 3-Thread Picotstitch |
| ─ | 4.5 | 4 | 5.5 | ─ | 5.5 | R | 3 | 1 |
32 | 2-Thread Chainstitch (CC) |
| ─ | 6 | ─ | ─ | 4 | ─ | R | 3 | 1 |
33 | 2-Thread Chainstitch (RC) |
| ─ | ─ | 6 | ─ | 4 | ─ | R | 3 | 1 |
34 | 3-Thread Overlock (LN) + 2-Thread Chainstitch (CC) |
| 3.5 | 6.5 | 4 | 4 | 4 | 6 | N | 3 | 1 |
35 | 3-Thread Overlock (RN) + 2-Thread Chainstitch (CC) |
| 3.5 | 4.5 | 4 | 4 | 4 | 6 | N | 3 | 1 |
36 | 2-Thread Overlock (LN) + 2-Thread Chainstitch (CC) |
| 3.5 | 0 |
| 6 | 4 | 6 | N | 3 | 1 |
37 | 2-Thread Overlock (RN) + 2-Thread Chainstitch (CC) |
| 3.5 | 0 |
| 6 | 4 | 6 | N | 3 | 1 |
38 | 3-Thread Overlock (LN) + 2-Thread Chainstitch (LC) |
| 3.5 | 6.5 | 4 | 4 | 4 | 6 | N | 3 | 1 |
39 | 3-Thread Overlock (RN) + 2-Thread Chainstitch (LC) |
| 3.5 | 4.5 | 4 | 4 | 4 | 6 | N | 3 | 1 |
40 | 2-Thread Overlock (LN) + 2-Thread Chainstitch (LC) |
| 3.5 | 0 |
| 6 | 4 | 6 | N | 3 | 1 |
41 | 2-Thread Overlock (RN) + 2-Thread Chainstitch (LC) |
| 3.5 | 0 |
| 6 | 4 | 6 | N | 3 | 1 |
