Threading the Right Overlock Needle Thread RN/Green

The right needle thread path is marked green.

    Prerequisite:

  1. Threading is prepared. Preparing for threading
  2. The left needle thread is threaded.

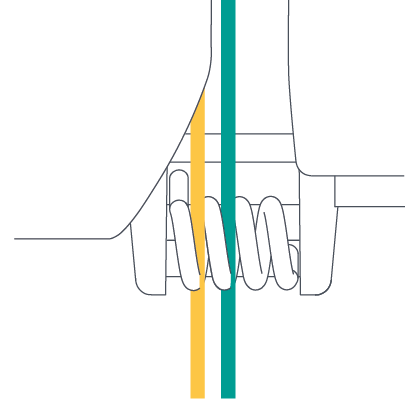

  1. Pull the thread beneath the thread guide plate to the left and up through the center opening of the thread deflection finger.
  3. Place the thread along the colored marking, then over the needle thread take-up cover and pull it towards the needle.

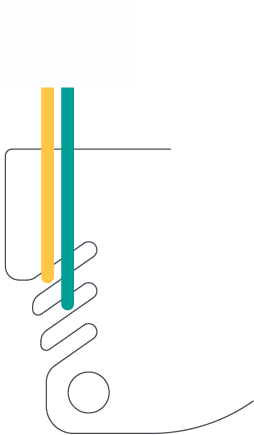

  5. Insert the thread into the right thread guide on the machine.

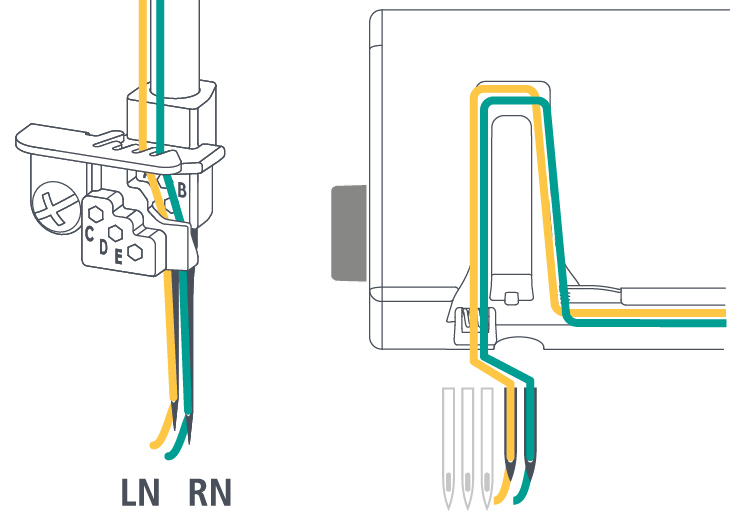

  6. Hook the thread into the right thread guide at the needle holder.
  8. Thread the right overlock needle (RN).
  9. Place the thread beneath the presser foot to the back left.
