Threading the Left Overlock Needle Thread LN/Yellow

The left needle thread path is marked in yellow.

    Prerequisite:

  1. Threading is prepared. Preparing for threading

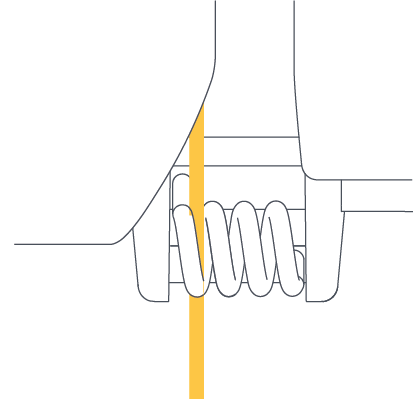

  1. Pull the thread beneath the thread guide plate to the left and up through the rearmost opening of the thread deflection finger.

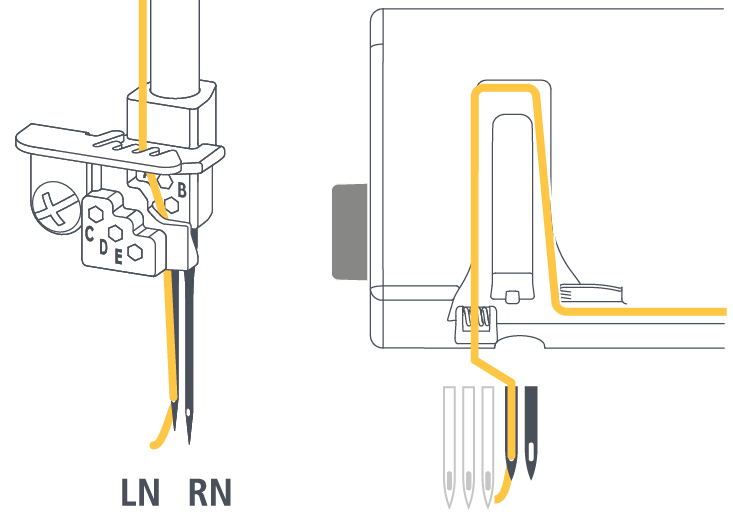

  3. Place the thread along the colored marking, then over the needle thread take-up cover and pull it towards the needle.

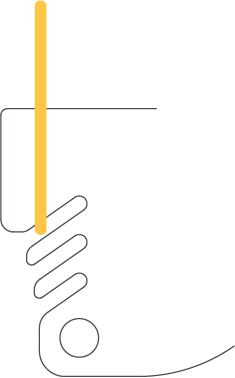

  5. Insert the thread into the left thread guide on the machine.
  6. Hook the thread into the left thread guide at the needle holder.
  8. Thread the left overlock needle (LN).
  9. Place the thread beneath the presser foot to the back left.
