Overview front controls

1	Quick Reverse	6	Needle Up/Down
2	Thread Cutter	7	Upper Multi-function Knob
3	Presser Foot Up/Down	8	Lower Multi-function Knob
4	Start/Stop	9	Needle Left/Right
5	Securing

Controls

Number	Name	Purpose
1	Quick Reverse	To sew backward, press the Quick Reverse button. To sew backward permanently, keep the Quick Reverse button pressed. The Quick Reverse button does not work for stitch patterns 22–24 and for buttonhole patterns 51–71.
2	Thread Cutter	To cut the upper thread and the lower thread automatically, press the button Thread Cutter. 2-6 securing stitches can be programmed in the Setup Program. They are sewn before the thread is cut.
3	Presser Foot Up/Down	Press the Presser Foot Up/Down button to raise the presser foot into a hover position. To lift the presser foot, press the button Presser Foot Up/Down.
4	Start/Stop	The button Start/Stop is used to change the presser foot position and to start the machine. To start the machine, keep the button Start/Stop pressed for 2 seconds. To raise the presser foot into hover position, briefly press the button Start/Stop.
5	Needle Up/Down	Press the button Needle Up/Down to lower the needle. Press the Needle Up/Down button again to raise the needle.
6	Securing	The function Securing at Sewing Start is activated in the Setup by default and can be deactivated by pressing the button Securing. When the function Securing at sewing start is not activated in the Setup, it can be programmed by pressing the button Securing. A securing icon which appears on the display during sewing indicates that the function is activated. The number of securing stitches can be programmed in the Setup Program. To sew the securing stitches first, press the button Securing before you start sewing. To sew securing stitches at the pattern end, press the button Securing while sewing. To sew securing stitches within a stitch pattern combination, press the button Securing. The selected pattern of the combination is secured according to the setting.

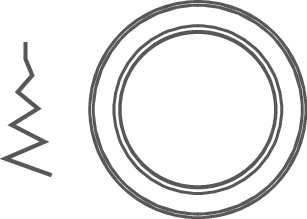

7	Upper Multi-function Knob	Settings can be changed with the Upper Multi-function knob and the Lower Multi-function knob.
8	Lower Multi-function Knob	Settings can be changed with the Lower Multi-function knob and the Lower Multi-function knob.

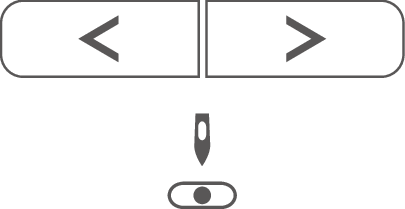

9	Needle Left/Right	There is a total of 15 needle positions. The needle position is indicated by the needle position number in the display. Press the Needle Left button to move the needle to the left. Press the Needle Right button to move the needle to the right.
