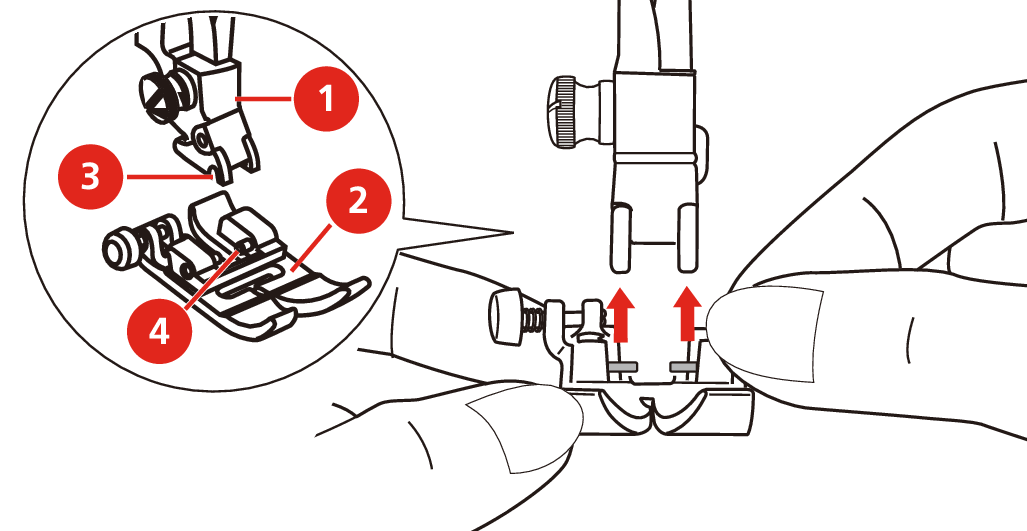

Attaching the Presser Foot Sole

  1. Raise the presser foot (1).
  2. Place the presser foot sole (2) under the shaft groove (3) so that the shaft groove is above the presser foot sole pin (4).
  3. Then push the new presser foot sole upward until it engages.
