Threading the Upper Thread

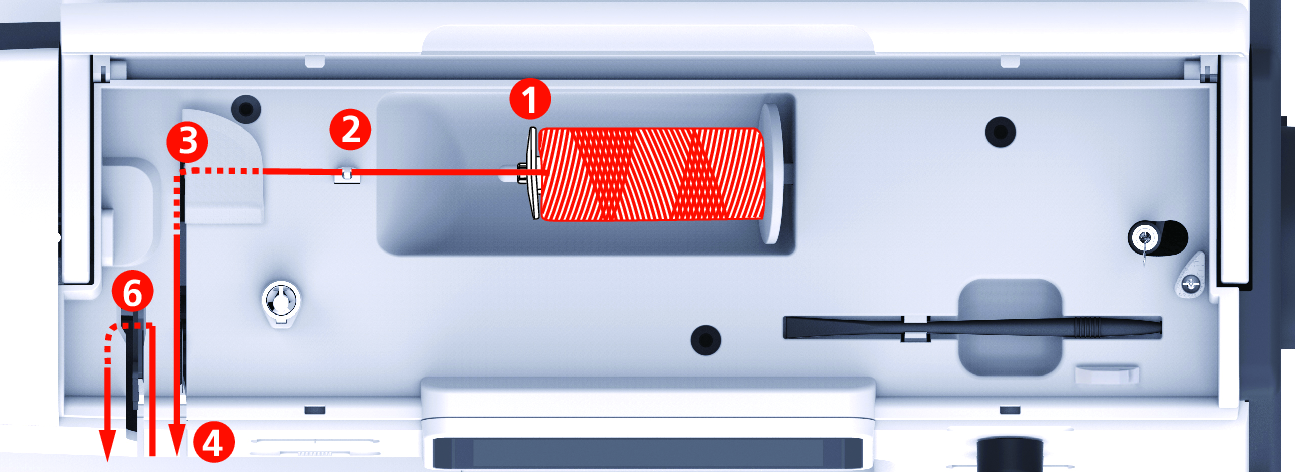

1 | Spool Cap |
2 | Thread Guide |
3 | Thread Pretension |
4 | Thread Tensions Discs |

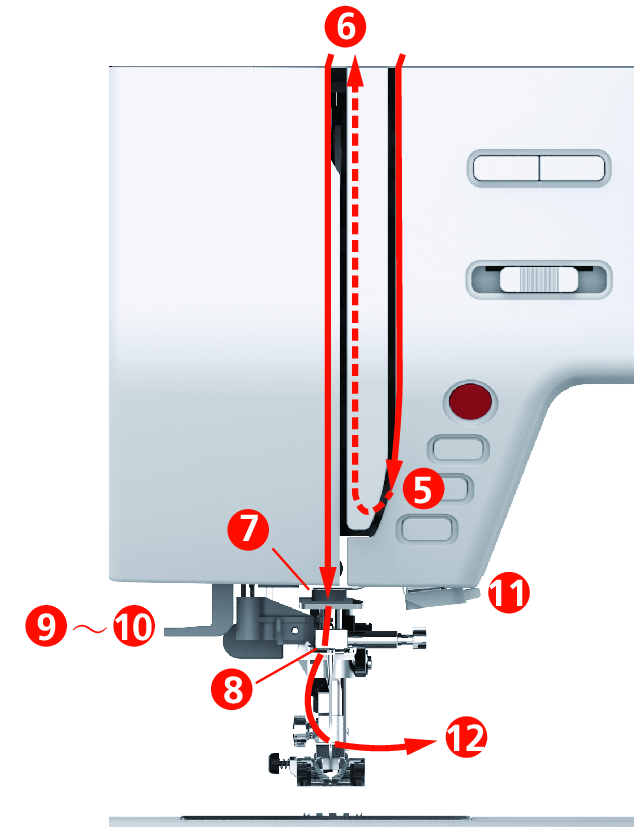

5 | Thread Take-up Lever Cover |
6 | Thread Take-up Lever |
7 | Guide |
8 | Guide |
9 | Thread Lever |
10 | Wire Hook |
11 | Thread Cutter |
12 | Thread |
- Place the thread spool on the spool pin so that the thread unwinds clockwise.
- Fit the spool cap suitable for the spool.

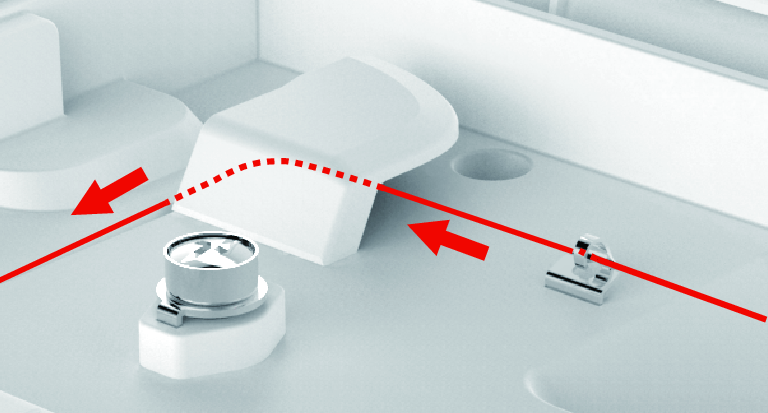

- Feed the thread through the thread guide.
- Guide the thread through the thread pretension.

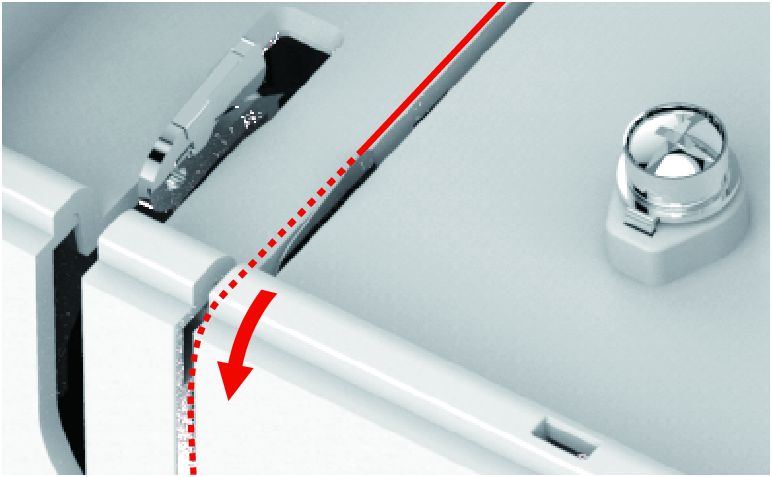

- Place the end of the thread down along the duct.

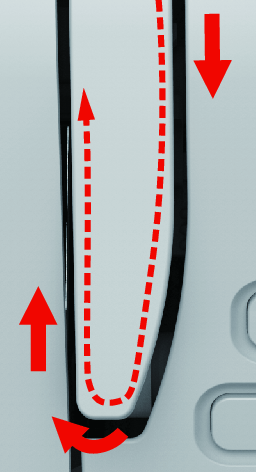

- Guide the htread downwards around the thread take-up lever cover.

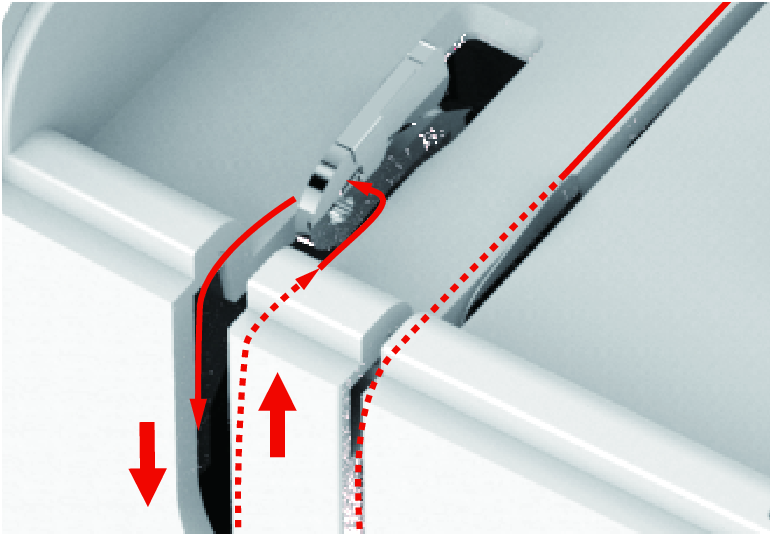

- Guide the thread at the top from rigth to the left through the thread take-up lever and then down again.

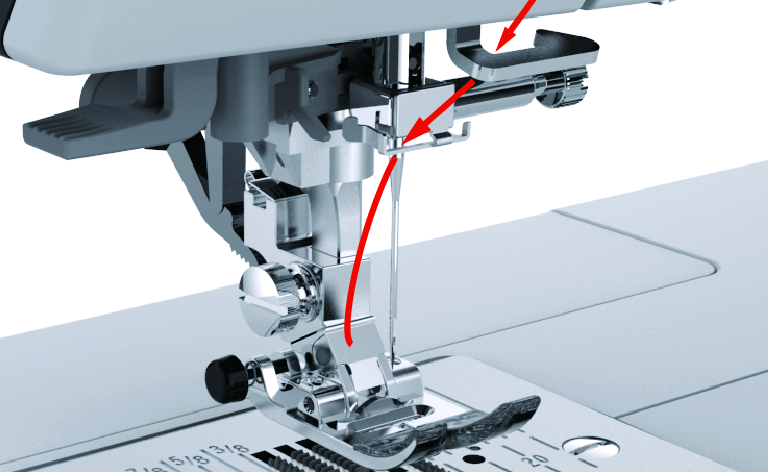

- Guide the thread through the guides above the needle.
- Lower the presser foot.

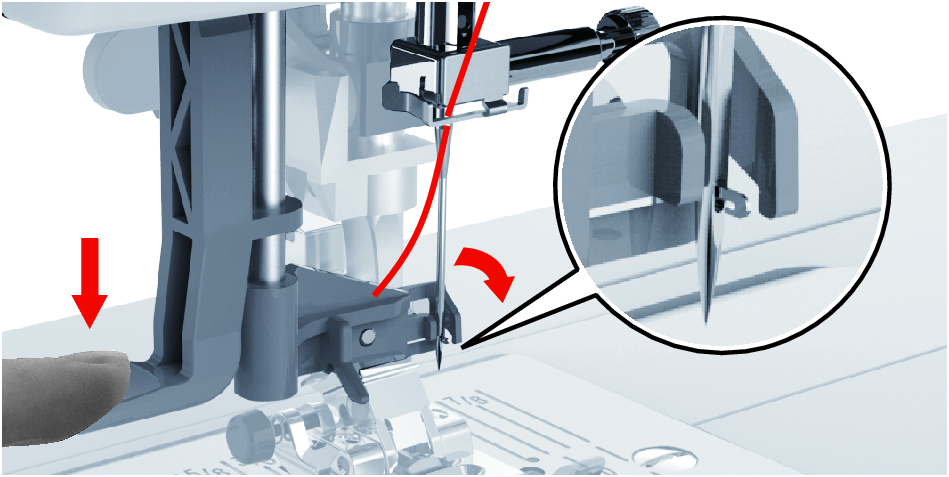

- Press the threading lever down until it clicks into place.
- The wire hook goeas through the eye of the needle.
- To prevent damage to the threader, the presser foot is lowered automatically.

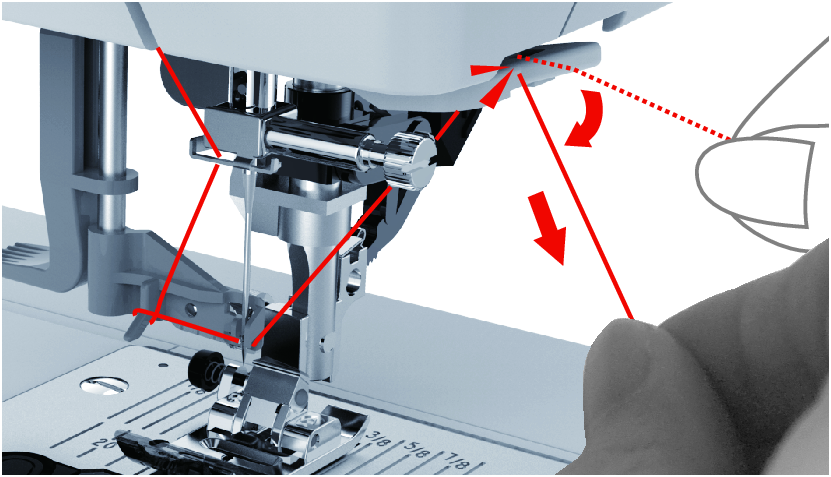

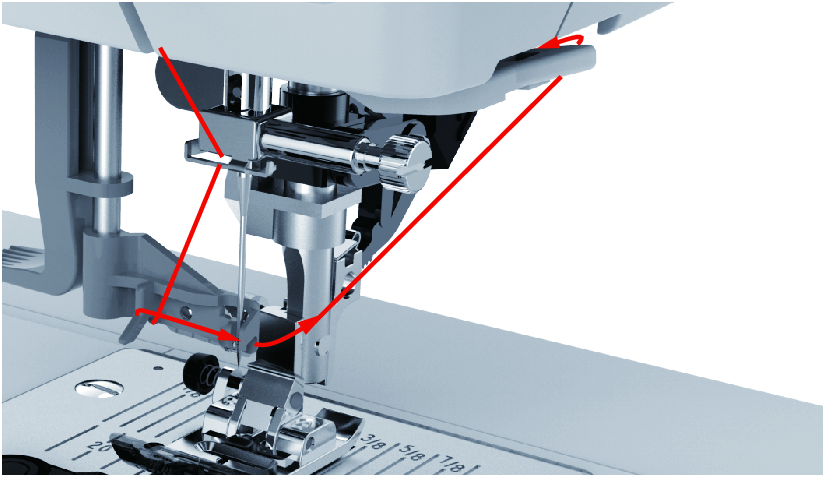

- Feed the thread around the thread guide.

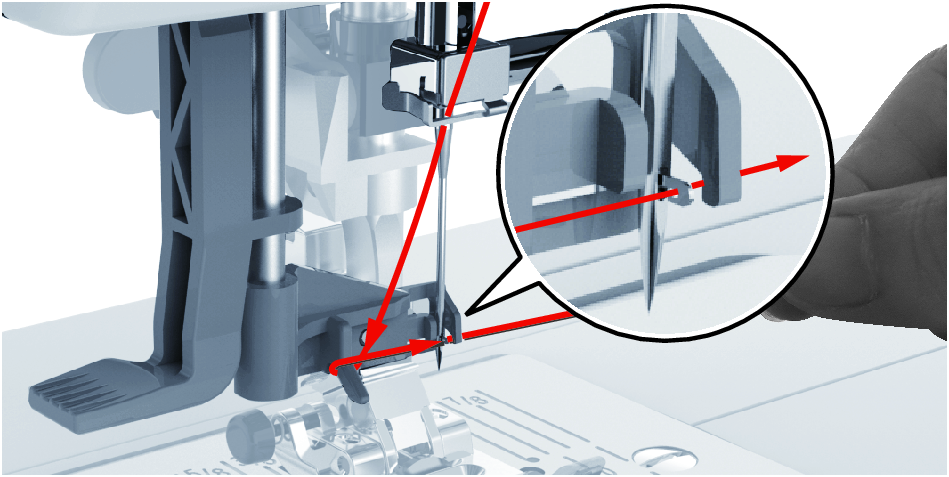

- Guide the thread in front of the needle and underneath the wire hook and hold it.

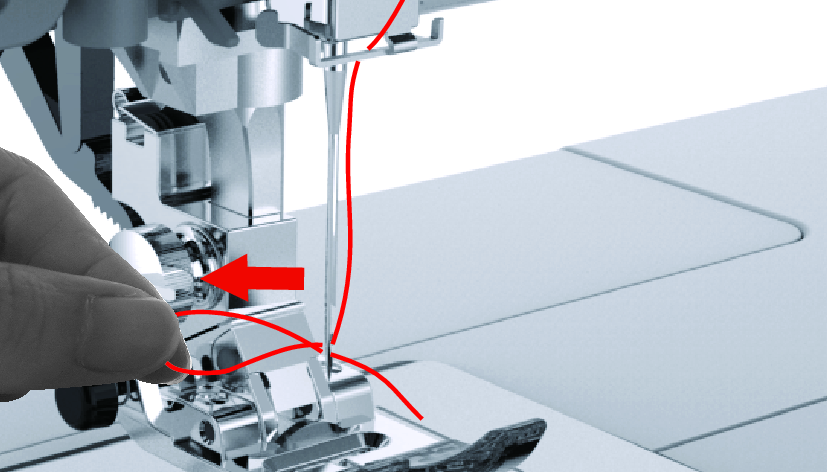

- To cut off excess thread, take the thread end and carefully pull it over the thread cutter. Please Note: Use the right thread cutter only when threading.
- To thread the needle, lift the needle-threading lever. Keep the thread loose when doing so.
- The wire hook moves backwards and pulls the thread through the needle eye into a loop.
- Pull the thread completely through the eye of the needle.
