Threading the Twin Needle

    Prerequisite:

  1. The zigzag foot is fitted.
  2. The twin needle is inserted.
  3. The second spool pin, felt disc and second spool are fitted.

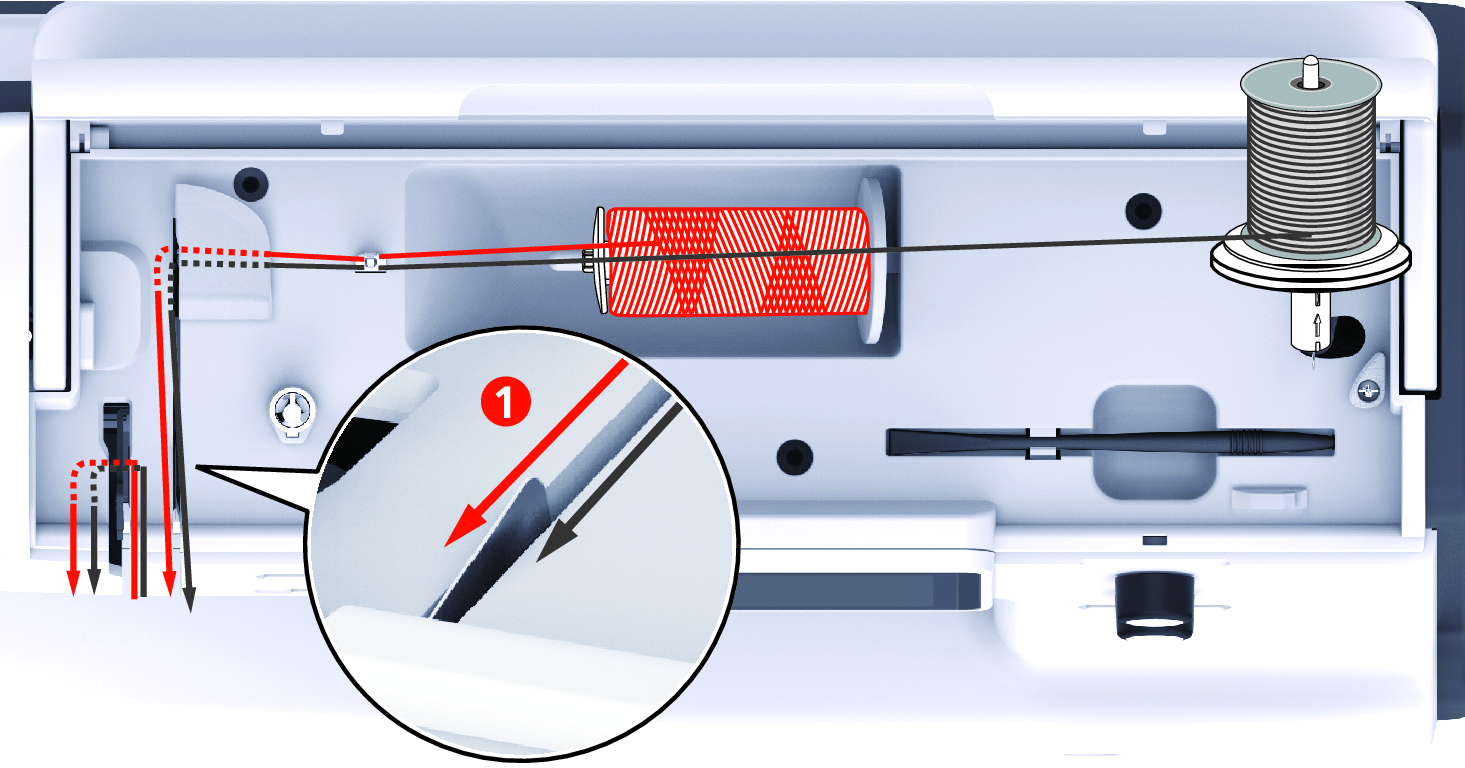

  1. Guide the thread from the horizontal spool pin (red) in the direction of the arrow to the left side of the thread tension disc (1).

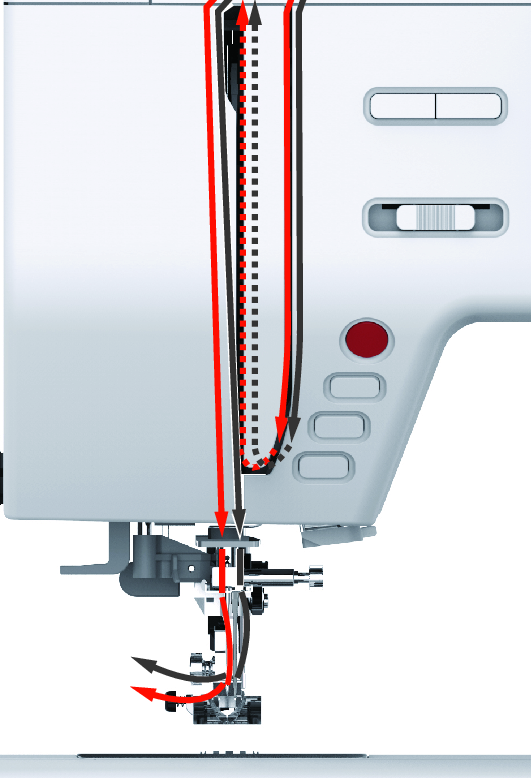

  3. Guide the thread to the thread guide above the needle.

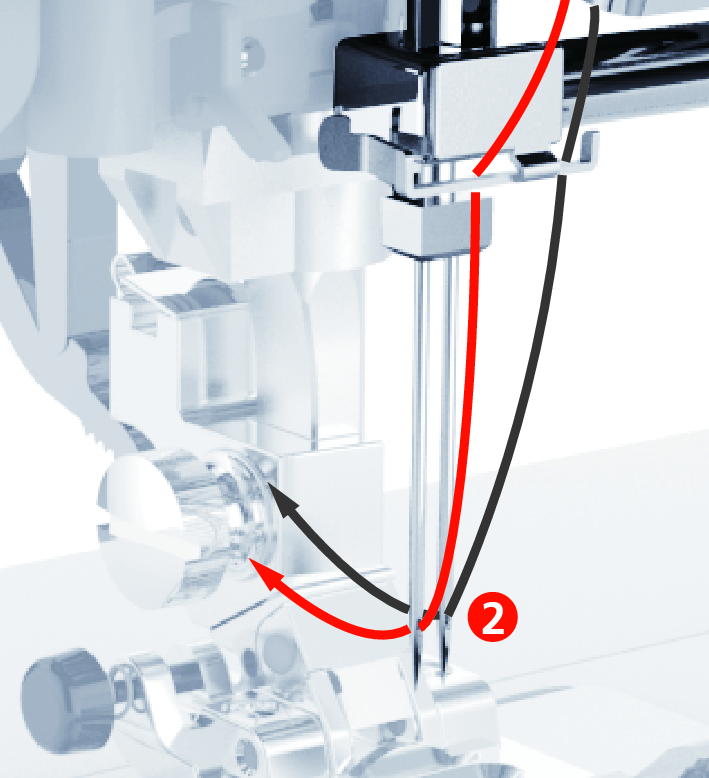

  5. Thread the thread into the left needle manually.
  7. Guide the thread from the vertical spool pin (blue) in the direction of the arrow to the right side of the thread tension disc (1).
  8. Guide the thread to the thread guide above the needle.
  9. Thread the thread into the right needle manually.

  10. NOTICE

    Needle Breakage Caused by Incorrect Presser Foot, Stitch or Needle Position

    If the presser foot, stitch or needle position is incorrect, the needle can collide with the presser foot or stitch plate and break.

    1. Fit the zigzag foot.
    2. Set a straight stitch.
    3. Set the needle to the center position.
