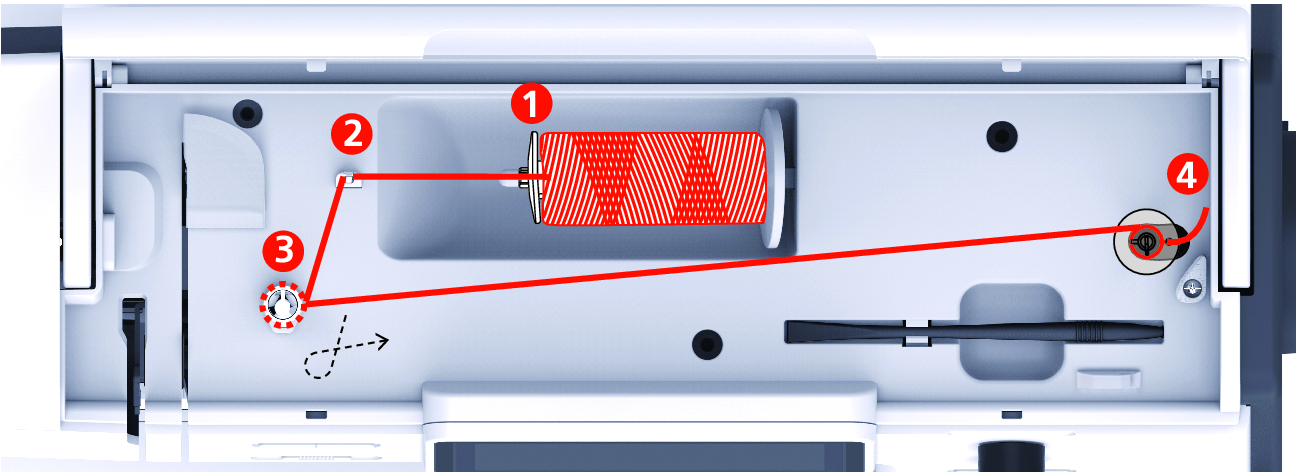

Winding the Bobbin Thread

1

Spool Cap

2

Thread Guide

3

Bobbin Winder Pretension

4

Spool Pin

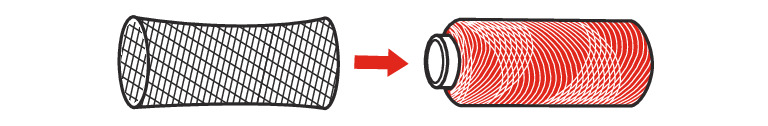

  1. To prevent slippery threads from catching or breaking, pull the spool net over the spool.

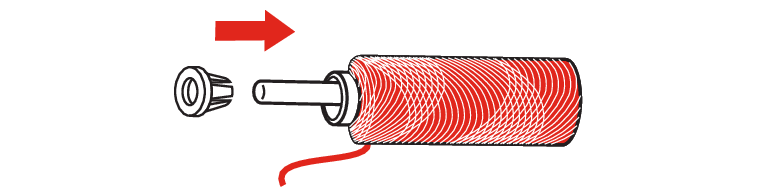

  3. Place the thread spool and the appropriate spool cap on the spool holder. Use the small spool cap on the spool holder.
  5. Feed the thread through the thread guide.

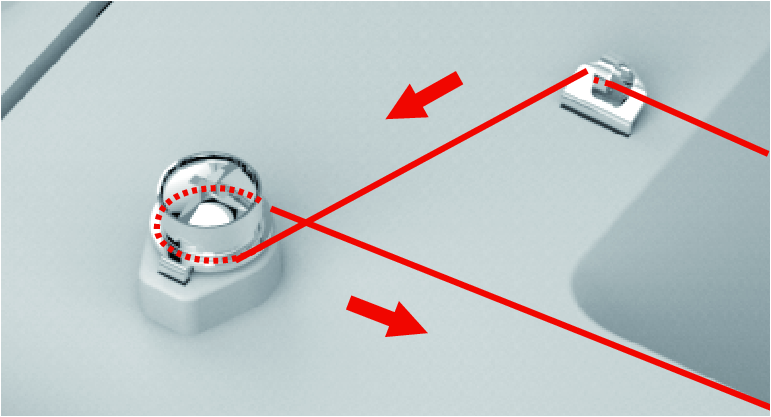

  7. Guide the thread around the bobbin winder pre-tension in the direction of the arrow.

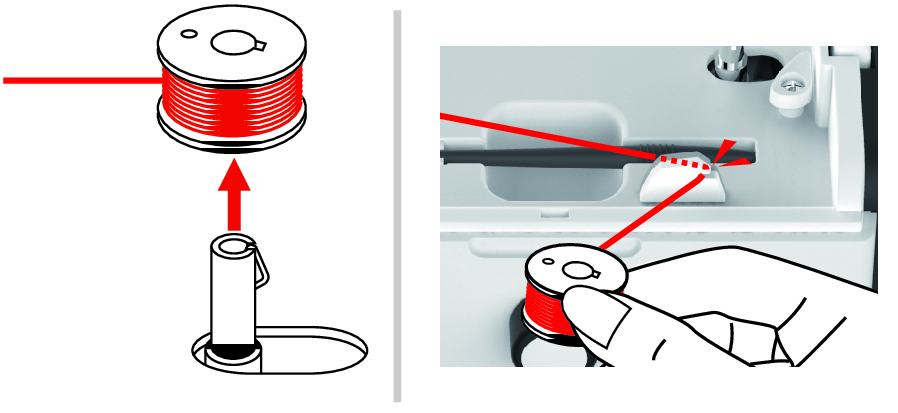

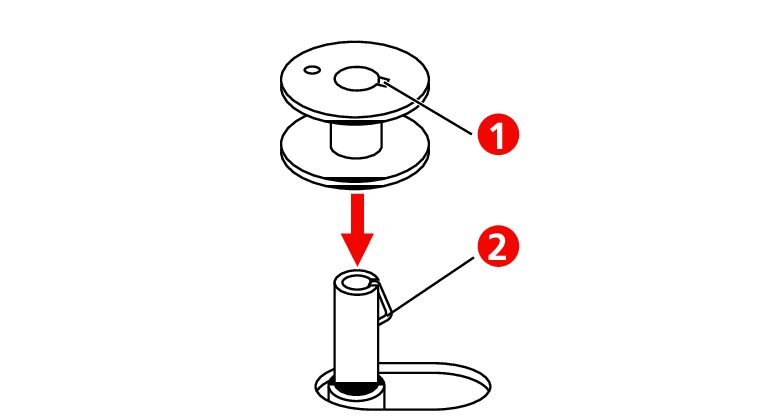

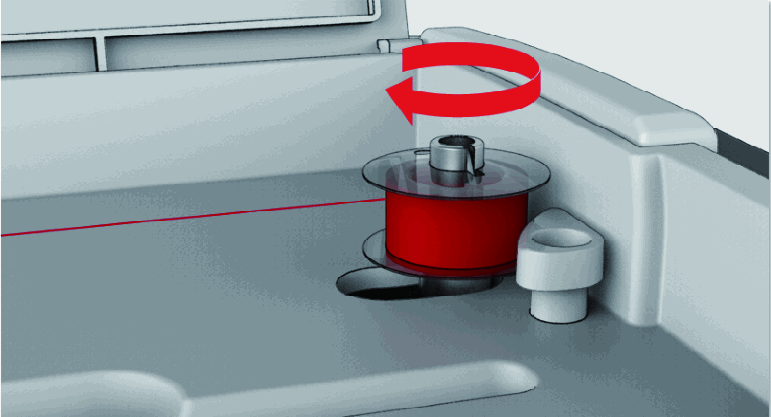

  9. Pull the end of the thread through one of the inner holes on the bobbin and place the empty bobbin on the bobbin winding unit.
  11. Push the bobbin to the rigth-hand position.
  13. The button Start/Stop flashes and the display for winding appears.
  15. Hold the end of the thread tightly with one hand.
  17. To start the winding process for a few revolutions and to stop it again, press the button Start/Stop so that the thread is firmly seated on the bobbin.
  18. Cut the end of the thread above the inner hole.
  20. To continue the winding process, push the button Start/Stop.
  21. To stop the winding process, press the button Start/Stop.
  22. Push the bobbin winding unit to the left into the starting position.
  24. Remove the bobbin and cut the thread.
