Changing the Stitch Plate

The stitch plate is marked with vertical, horizontal and diagonal lines in millimeters (mm) and inches (inch). These markings are helpful for sewing or precise top-stitching. Please Note: The markings of the bobbin case and the stitch plate must be aligned identically.

    Prerequisite:

  1. The feed dog is lowered.
  2. The machine is switched off and disconnected from the power supply system.
  3. The bobbin cover, the needle and the presser foot are removed.

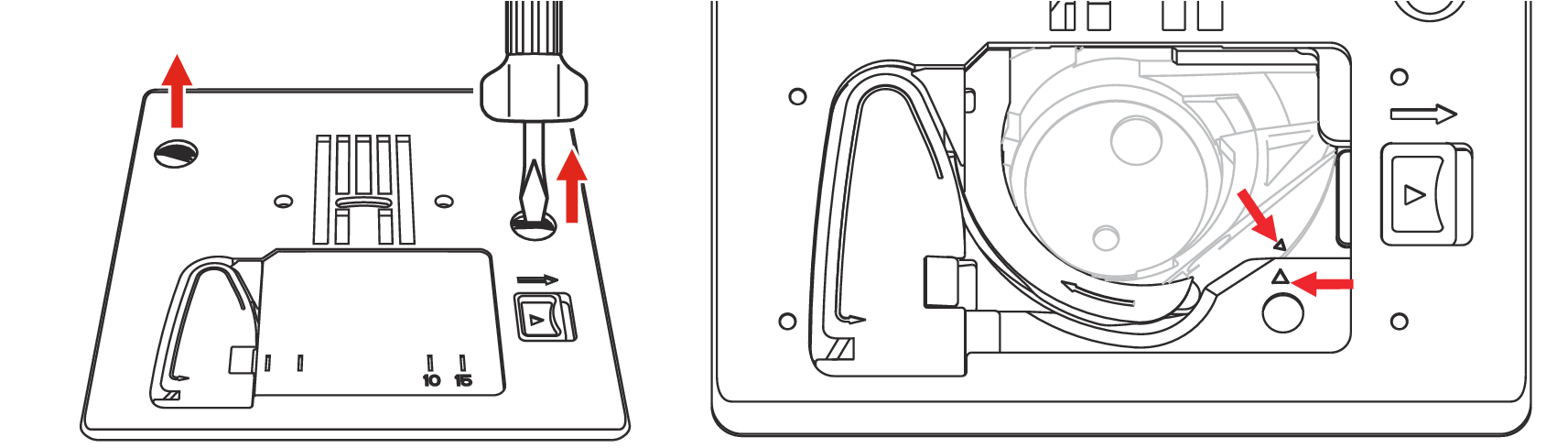

  1. Remove the screws of the stitch plate with the screwdriver.
  3. Remove the stitch plate.
  4. Position new stitch plate and tighten screws with screwdriver.
