Inserting the Embroidery Needle

Tip

Embroidery needles of the type 130/705 H-SUK provide a larger eye and are slightly rounded. This avoids thread abrasion when using Rayon- and cotton embroidery thread. Depending on the embroidery thread use a size No. 70-SUK to No. 90-SUK needle.

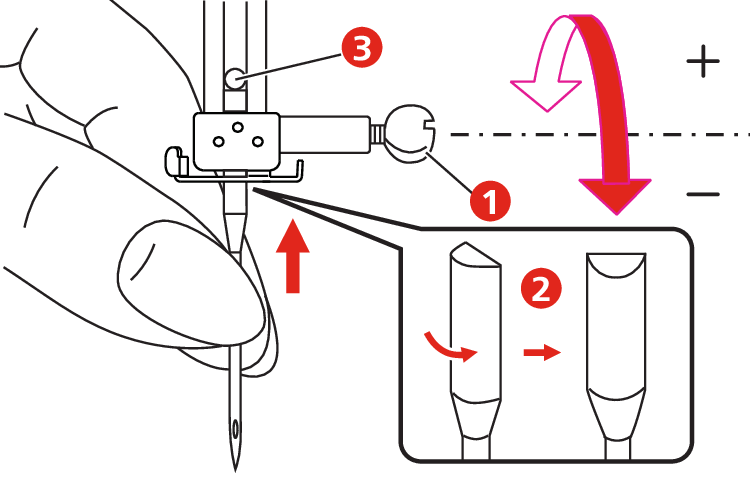

  1. Raise the needle.
  2. Switch the machine off and disconnect it from the power supply system.
  3. Remove the presser foot.
  4. Loosen the needle clamp screw (1) using the screwdriver and remove the needle.
  5. Hold the needle with the flat side (2) to the back.
  6. Push the needle up to the stop (3).
  7. Tighten the needle clamp (1) screw using the screwdriver.
