Mount the Embroidery Foot

  1. Raise the needle.
  2. Raise the presser foot and dual feed.
  3. Switch the machine off and disconnect it from the power supply system.

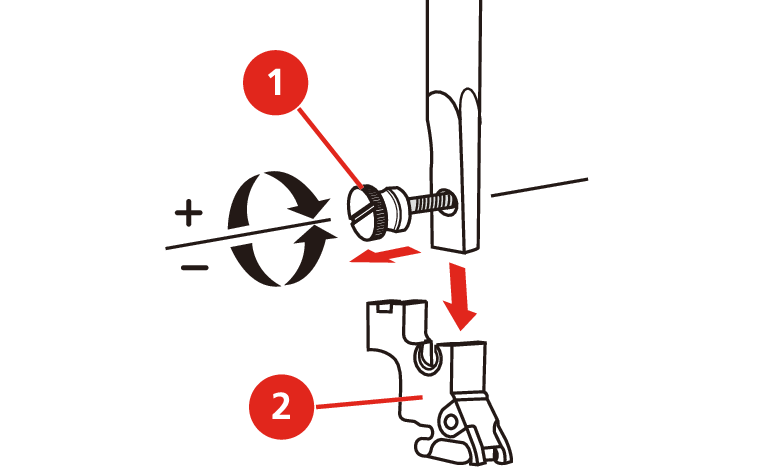

  4. Remove the presser foot holder (2) by unscrewing the presser foot bar attaching screw (1).

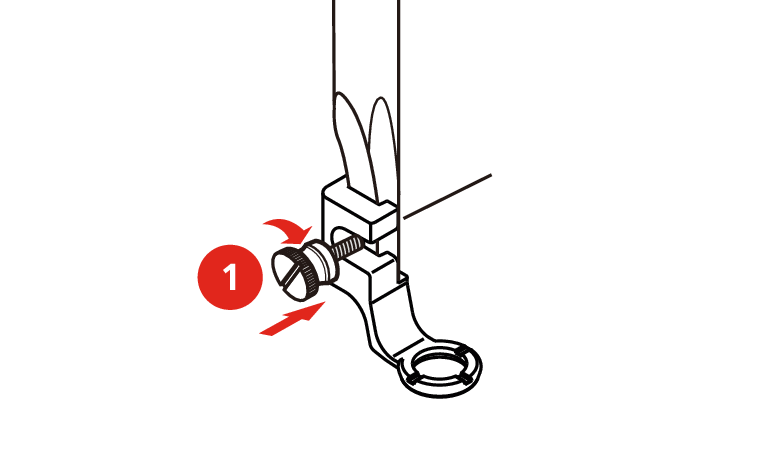

  6. Attach the Embroidery Foot (JL) from the back with the index finger to the presser foot bar and tighten the screw.
  8. Important: After starting the machine, select the embroidery foot in the Presser Foot Sole Display.
