Attaching and Removing the Hoop

Attaching the Hoop

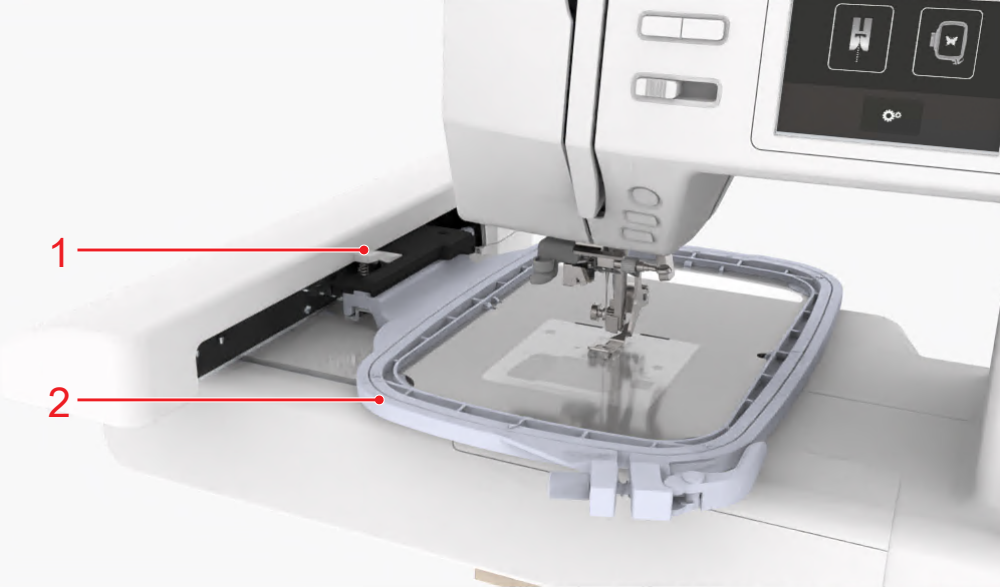

1

Safety Lever

2

Hoop

  1. Raise the needle.
  2. Raise the presser foot.
  3. Hold the hoop with the right side of the fabric up with the attaching mechanism to the left.
  4. Position the hoop below the presser foot. Push the presser foot lifter all the way up and hold it there.
  5. Slide the embroidery hoop into the embroidery module until it clicks into place.
  6. The machine recognizes the attached embroidery hoop and displays it in the Status Bar.
  7. Before using the embroidery hoop for the first time, or if the needle position and the center of the hoop do not align, calibrate the hoop on the machine. Calibrating the Hoop

Removing the Embroidery Hoop

  1. Press the safety lever on the embroidery hoop coupling.
  2. Move the embroidery hoop away. Push the presser foot lifter all the way up and hold it there.
